BEC MX-100U
by BEC Technologies, Inc.

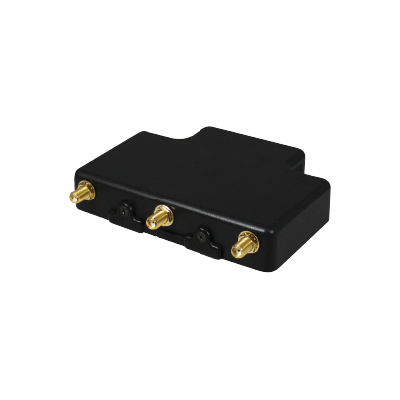

BEC MX-100U

$306.00 - $306.00
$306.00
$306.00 - $306.00
$306.00

Key features

-LTE Advanced CAT6 Modem with Carrier Aggregation
-Dual SIMs slots for Carrier Redundancy
-Ultra-Compacy, IP-50 Hardened enclosure with Industrial-grade Components
-Enables Dual Modem/Failover with Active GPS capability on select BEC Routers
-Applications: Industrial, Kiosk/Vending, Digital Signage, Embedded Systems, Smart Energy, Public Safety

Product description

  • The BEC MX-100U Series 4G/LTE Industrial modem is an rugged

  • ultra-compact 4G/LTE Modem for Enterprise and IoT/M2M applications that require secure
  • always-on LTE connectivity. The MX-100U features a single 4G/LTE radio with Dual SIM slots
  • Active GPS
  • external antennas and a standard USB interface. The lightweight yet hardened design is built with Industrial-Grade components and has an IP-50 rating for protection against harmful dust particles Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE Only
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
0
SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
USB ports
1
Voltage supply
5V
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM Yes
E911 No
eUICC No
Expansion Card Slots No
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial No
Smart Card Reader No
Voice Transmission Capable No
Wifi No
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Windows
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management Yes
SMS Capability No
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network No
Fixed Wireless Access
(FWA)		 No
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)		 No

Chassis

Main Features
Dimensions
.83x3.94x3.15 in.
Weight
3 lbs
Operating Temperature
-4°F °F
Storage Temperature
-40°F °F
Relative Humidity
20 ~ 95% non-condensing
Other Features
Rain & dust resistance Yes
Vehicle Mounting No

Network

Main Features
NAT
No
Routing Protocols
No
Security Protocol
No
VPN Support
No
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall No
UMTS Yes
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz)
LTE Global / Roaming No
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No

Industry

Construction
Healthcare
Industrial / Manufacturing
Media and Entertainment
Residential / Consumer
Retail
