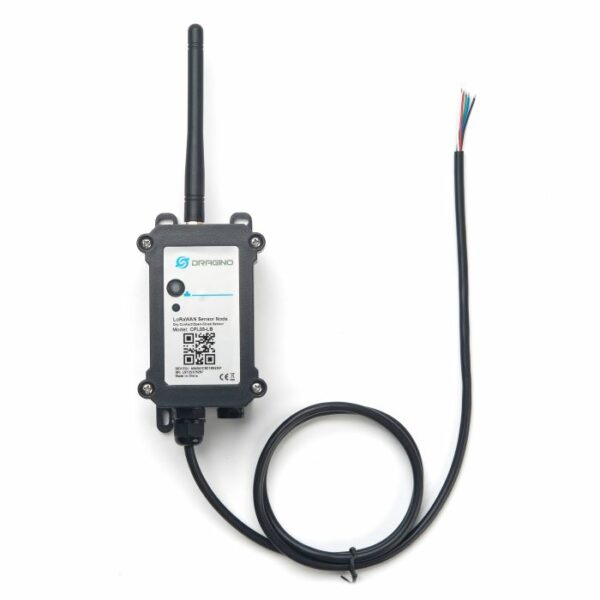

Dragino CPL03-LB Contact Sensor
Product description
The Dragino CPL03-LB is a LoRaWAN Contact Sensor for Internet of Things solution. It detects dry contact status
- open time
- open counts
- and then upload to IoT server via LoRaWAN wireless protocol.
The CPL03-LB will send periodically data every day as well as for each dry contact action. It also counts the contact open times and calculate last open duration. User can also disable the uplink for each open/close event
- instead
- device can count each open event and uplink periodically.
The LoRa wireless technology used in CPL03-LB allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
CPL03-LB supports open alarm feature
- user can set open alarm for instant notice. CPL03-LB supports Datalog feature
- it can save the data when there is no LoRaWAN network and uplink when network recover.
CPL03-LB is designed for outdoor use. It has a weatherproof enclosure and industrial level battery to work in low to high temperatures.
CPL03-LB supports BLE configure and wireless OTA update which make user easy to use.
CPL03-LB is powered by 8500mAh Li-SOCI2 battery
- it is designed for long term use up to 5 years. Vutility HotDrop Direct energy voltage amp
