Flex Module Plus 5G
by Peplink

Flex Module Plus 5G

$499.00 - $499.00
$499.00
$499.00 - $499.00
$499.00

Key features

-2x Embedded Cellular 5G Modems.
-Downlink/Uplink: 5G: 4 Gbps / 700 Mbps LTE CAT-20: 2 Gbps / 150 Mbps
-Redundant 4FF Nano SIM Slots

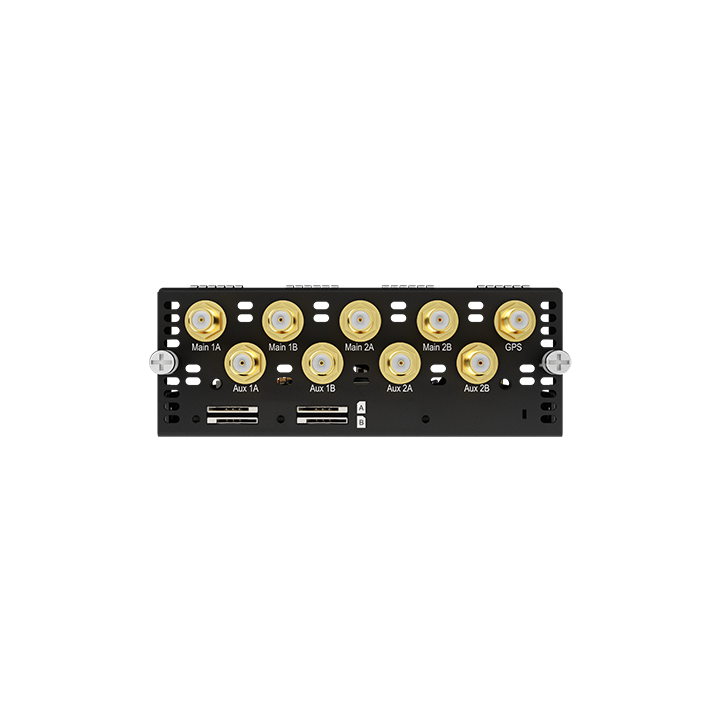

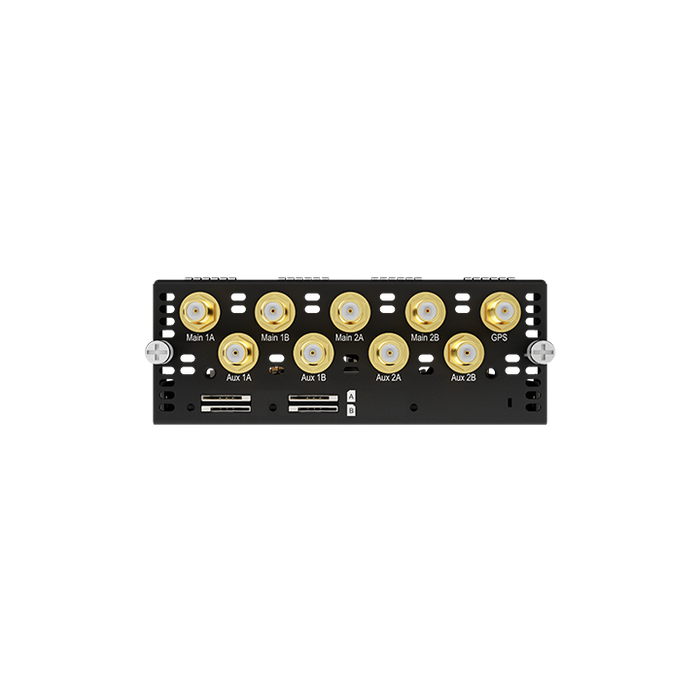

-8x SMA Cellular Antenna Connectors
-1x SMA GPS Antenna Connector

Product description

  • The Flex Module Plus 5G is an expansion module for EPX / SDX / SDX Pro router comes with two 5G cellular modems and redundant SIM slots

  • which provide upgrade and modify potential for EPX / SDX / SDX Pro router Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE with GSM/UMTS and 5G NR NSA
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
0
SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
USB ports
SIM2 - Standard/Industrial Mini SIM (2FF)
Voltage supply
No
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM Yes
E911 No
eUICC No
Expansion Card Slots No
GNSS No
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial No
Smart Card Reader No
Voice Transmission Capable No
Wifi No
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level Security Level 1,(Regular OD devices. Minimum security requirements mandated.)
EMS No
MMS No
Remote Management Yes
SMS Capability No
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 Yes
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)		 LTE Licensed,LTE CBRS,5G Licensed

Chassis

Main Features
Dimensions
1.4x7.4x1.5 in.
Weight
0.83 lbs
Operating Temperature
32 °F to 104 °F
Storage Temperature
32 °F to 104 °F
Relative Humidity
15%–95% (non-condensing)
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
One-to-one, one-to-many
Routing Protocols
Static, Dynamic, OSPF, RIPv2, BGP
Security Protocol
Yes
VPN Support
PepVPN, IPSec, L2TP
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS Yes
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz), Band66 (1700 MHz)
LTE Global / Roaming NSA FR1 (Sub6) n2, NSA FR1 (Sub6) n5, NSA FR1 (Sub6) n66
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No

Industry

Agricultural
Airborne Usage
Construction
Distribution
Education
Financial Services
Government
Healthcare
