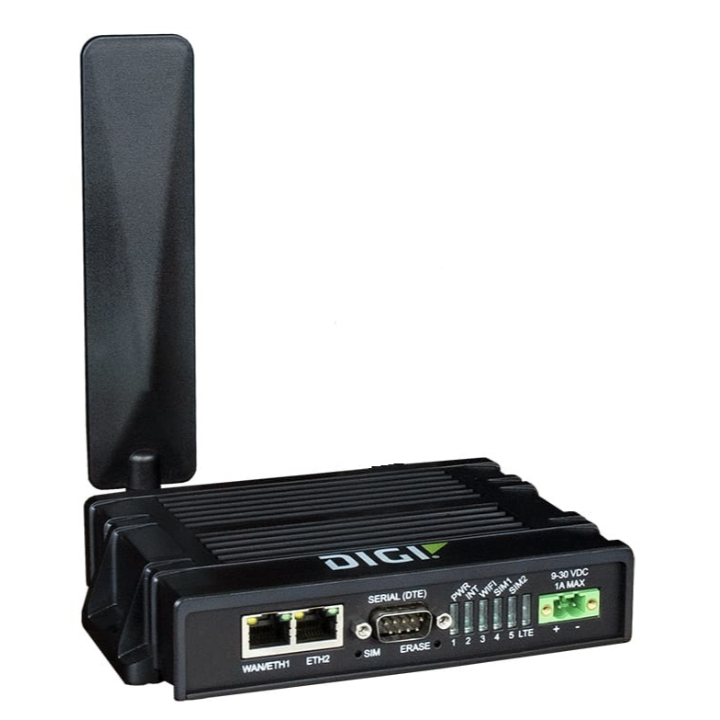

IX20-00M1

Original price $519.00 - Original price $519.00
Original price
$519.00
$519.00 - $519.00
Current price $519.00

Key features

-4G LTE Cat M1 - Cellular Router
-(2) RJ-45 - Ethernet
-(1) RS-232 Serial
-Status LEDs

Product description

  • Digi IX20 is a full-featured cellular router that scales from general connectivity applications to industrial routing and security. Model: Digi® IX20-00M1 Cellular - 4G LTE Cat M1 Transfer rate (max): 375 kbps down

  • 375 kbps up Base hardware: (2) RJ-45 Ethernet
  • (1) RJ-45 RS-232 Remote management: Digi Remote Manager® Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE with GSM/UMTS
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
2
SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
USB ports
SIM2 - Standard/Industrial Mini SIM (2FF)
Voltage supply
No
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM Yes
E911 No
eUICC No
Expansion Card Slots No
GNSS No
GPS No

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial Yes
Smart Card Reader No
Voice Transmission Capable No
Wifi No
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability

Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management Yes
SMS Capability Yes
WEA
(Wireless Emergency Alert)
No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)
No
Split Data Routing
(aka Dual APN)
No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)
No

Chassis

Main Features
Dimensions
6.38x4.21x1.38 in.
Weight
1.4 lbs
Operating Temperature
-40 °C to 70 °C
Storage Temperature
-40 °C to 85 °C
Relative Humidity
5% to 95% non-condensing
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
IP pass-through; NAT, NAPT with IP port forwarding
Routing Protocols
IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; Ethernet bonding; GRE; multicast routing; Routing protocols: RIP (v1, v2) OSPF, IPv6 RIP-NG, OSPFv3, BGP; IP failover: VRRP; automatic failover; Digi SureLink®
Security Protocol
IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; Authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support
VPN Support
IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MD5, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448)
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS No
LTE Band4 (1700 MHz), Band13 (700 MHz)
LTE Global / Roaming Band1 (2100MHz), Band3 (1800MHz), Band12 (700 MHz)
5G / Roaming 1800 MHz, 1900 MHz, 850 MHz, 900 MHz
5G Global / Roaming No
GPRS No
GSM No
