LTE910XF v7.00
by Janus Remote Communications

LTE910XF v7.00

$103.40 - $103.40
$103.40
$103.40 - $103.40
$103.40

Key features

-Industry Standard 20-pin Connectors PCB Mount Size: 1.14 inch x 1.3 inch x 0.256 inch Temp Range: -40°C to 85°C Input Voltage: 3.4 to 4.2Vdc

Product description

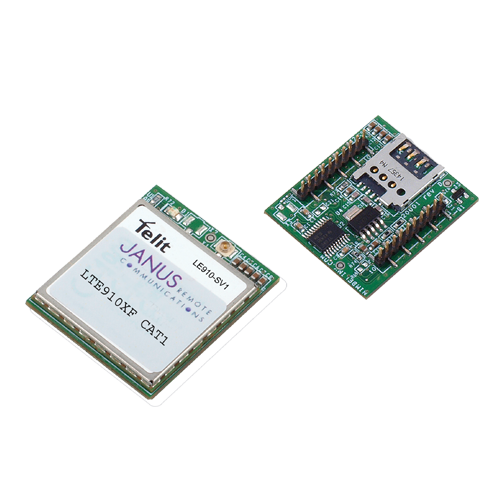

The Verizon LTE910XF v7.00 XF Footprint Plug-In modem is an LTE Category 1 Carrier end device certified 4G cellular modem. They utilize the Telit LE910-NA1 [V2] module as their cellular engine. The LTE910XF v6.0 units operate in LTE bands (B13) and (B4). End device certification allows users to implement the LTE910XF in their devices with no further North American carrier certification requirements.

Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE Only
Other Features

Hardware

Main Features
Antenna
External
Battery
No
Display resolution
No
Ethernet ports
0
SIM type
Standard/Industrial Micro SIM (3FF)
USB ports
1
Voltage supply
3.4 to 4.2Vdc
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM No
E911 No
eUICC No
Expansion Card Slots No
GNSS No
GPS No

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial No
Smart Card Reader No
Voice Transmission Capable No
Wifi No
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Other
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management No
SMS Capability Yes
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 No
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)		 No

Chassis

Main Features
Dimensions
1.14x1.3x0.256 in.
Weight
0.3 oz
Operating Temperature
-40 °C to 85 °C
Storage Temperature
-40 °C to 85 °C
Relative Humidity
20 to 90% non-condensing
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
No
Routing Protocols
No
Security Protocol
No
VPN Support
No
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall No
UMTS No
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band13 (700 MHz)
LTE Global / Roaming No
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No

Industry

Agricultural
Construction
Healthcare
Industrial / Manufacturing
Oil and Gas
Retail
Transportation
Utilities
