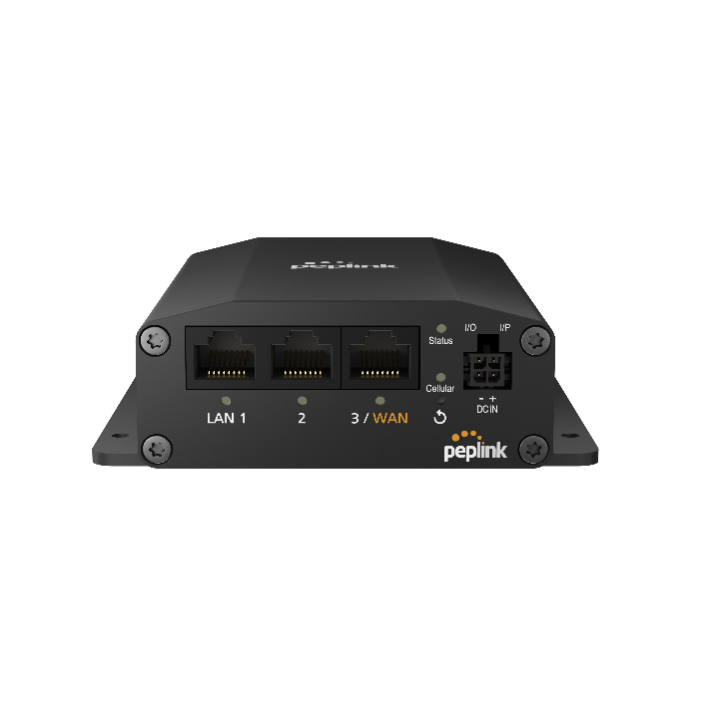

MAX BR1 MINI Core (HW3)
by Peplink

MAX BR1 MINI Core (HW3)

$349.99 - $349.99
$349.99
$349.99 - $349.99
$349.99

Key features

-1x embedded LTE cellular modem (Downlink/Uplink: CAT-4: 150 Mbps/50 Mbps)
-High security as less attack surface
-Power port with GPIO and Ignition Sensing, Multiple power input, PoE
-Remote Central Management with InControl 2

Product description

The MAX BR1 Mini Core HW3 is a single cellular router built to fulfill strict security compliances. The BR1 Mini Core does not have GPS and Wi-Fi functions in order to minimize the attack surface. Supporting Ignition Sensing and the extra LAN port make the HW3 version a more powerful option for your deployment.

Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE with GSM/UMTS
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
3
SIM type
Standard Nano SIM (4FF)
USB ports
0
Voltage supply
10V – 30V DC
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM No
E911 No
eUICC No
Expansion Card Slots No
GNSS No
GPS No

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial No
Smart Card Reader No
Voice Transmission Capable No
Wifi No
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management Yes
SMS Capability No
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 Yes

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 Yes
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable Yes
Private Wireless
Network (On Site)		 No

Chassis

Main Features
Dimensions
5.0x4.2x1.4 in.
Weight
0.95 lbs
Operating Temperature
-40 °F to 149 °F
Storage Temperature
-40 °F to 149 °F
Relative Humidity
15% – 95% (non-condensing)
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
One-to-one, one-to-many
Routing Protocols
Static, Dynamic, OSPF, RIPv2, BGP
Security Protocol
Yes
VPN Support
PepVPN, IPSec, L2TP
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS Yes
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz), Band66 (1700 MHz)
LTE Global / Roaming No
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No

Industry

Agricultural
Airborne Usage
Construction
Distribution
Education
Financial Services
Government
Healthcare
