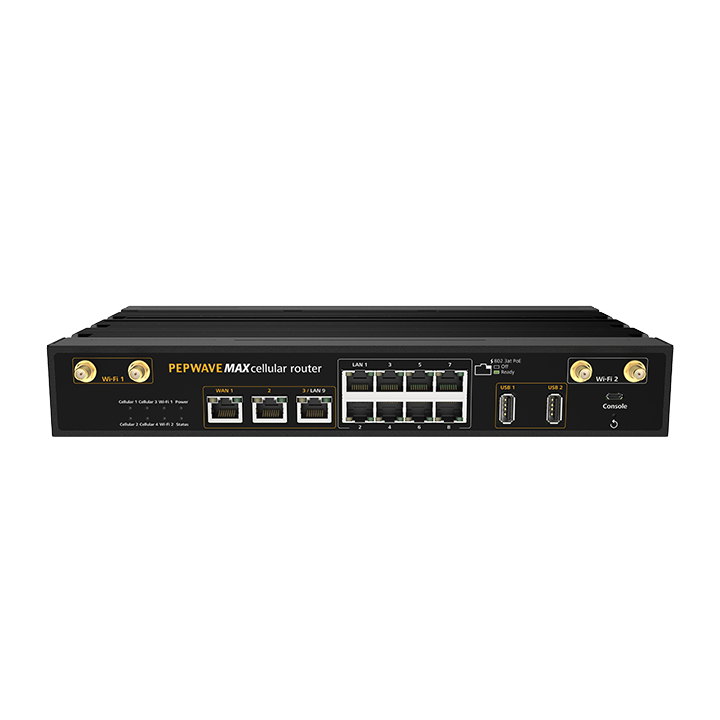

MAX HD4 MBX 5G
by Peplink

MAX HD4 MBX 5G

$649.00 - $649.00
$649.00
$649.00 - $649.00
$649.00

Key features

-4x embedded cellular 5G modem
-(Downlink/Uplink: 5G: 4 Gbps/700 Mbps; LTE CAT-20: 2 Gbps/150 Mbps)
-Simultaneous dual-band Wi-Fi 6
-PoE
-Remote Central Management with InControl 2

Product description

  • The HD4 MBX 5G is a quad cellular mobile powerhouse which capable of combining the bandwidth of up to 4 cellular links into an unbreakable

  • high-speed SD-WAN connection. Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE with GSM/UMTS and 5G NR NSA
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
No
SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
USB ports
2
Voltage supply
DC Jack/Terminal Block: 12-56 V
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM Yes
E911 No
eUICC Yes
Expansion Card Slots No
GNSS No
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial No
Smart Card Reader No
Voice Transmission Capable No
Wifi Yes
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
No
FoTA Client Type
No
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management Yes
SMS Capability No
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 Yes
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)		 LTE Licensed,LTE CBRS,5G Licensed

Chassis

Main Features
Dimensions
1.7x11.5x7.0 in.
Weight
7.28 lbs
Operating Temperature
-40° °F to 149 °F
Storage Temperature
-40 °F to 149 °F
Relative Humidity
15%–95% (non-condensing)
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
One-to-one, one-to-many
Routing Protocols
Static, Dynamic, OSPF, RIPv2, BGP
Security Protocol
Yes
VPN Support
PepVPN, IPSec, L2TP
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS Yes
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz), Band48 (3500 MHz), Band66 (1700 MHz)
LTE Global / Roaming NSA FR1 (Sub6) n2, NSA FR1 (Sub6) n5, NSA FR1 (Sub6) n66, NSA FR1 (Sub6) n77
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No
