MG90 LTE-APro
by Sierra Wireless

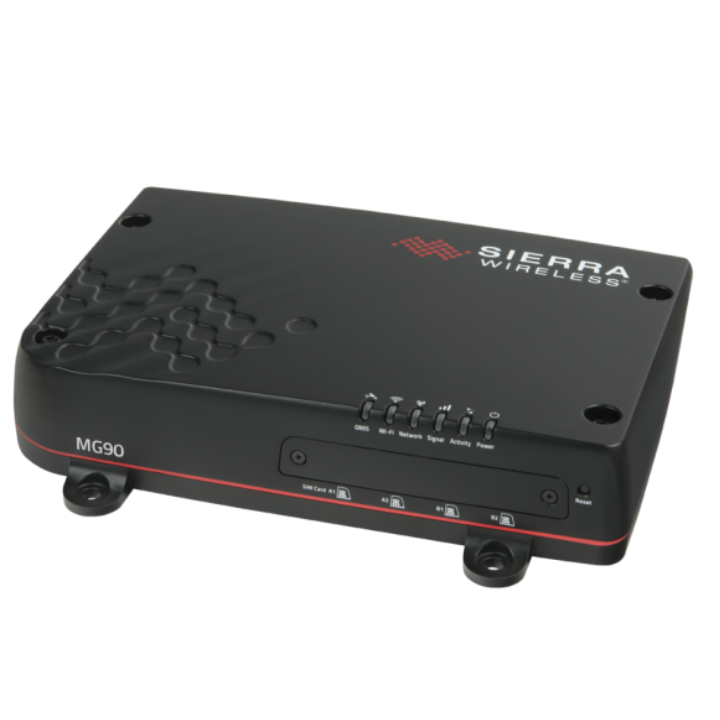

MG90 LTE-APro

$499.99 - $499.99
$499.99
$499.99 - $499.99
$499.99

Key features

-FIPS 140-2 compliant
-Dual LTE Advanced Pro Radios
-Dedicated 2 x 802.11ac Wi-Fi for simultaneous depot and access point Wi-Fi
-48 Channel GNSS with active antenna support

Product description

  • The MG90 LTE-A Pro from Sierra Wireless is an Intelligent Vehicle Networking System for mission-critical deployments. It offers secure mobile broadband with unmatched performance and reliability through a Cognitive Engine that dynamically manages multiple broadband connections to ensure that connectivity is uninterrupted. The MG90 LTE-A Pro is an ideal solution for demanding deployments in public safety

  • emergency services
  • service fleets
  • and public transit. Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE Only
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
5
SIM type
Standard/Industrial Mini SIM (2FF)
USB ports
2
Voltage supply
9 to 36VDC
Other Features
Accelerometer Yes
Z-Wave No
Audio No
Battery Safety No
Bluetooth Yes
Camera No
Dual SIM No
E911 No
eUICC No
Expansion Card Slots Yes
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial Yes
Smart Card Reader No
Voice Transmission Capable No
Wifi No
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management Yes
SMS Capability No
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 No
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)		 No

Chassis

Main Features
Dimensions
10.6x8.7x2.4 in.
Weight
5.3 lbs
Operating Temperature
-30/70 °C
Storage Temperature
-40/85 °C
Relative Humidity
95%
Other Features
Rain & dust resistance Yes
Vehicle Mounting Yes

Network

Main Features
NAT
Yes
Routing Protocols
No
Security Protocol
IPsec, OpenSSL
VPN Support
IPsec, OpenVPN
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS Yes
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz), Band66 (1700 MHz)
LTE Global / Roaming Band1 (2100MHz), Band3 (1800MHz), Band7 (2600 MHz), Band12 (700 MHz), Band14 (700 MHz)
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No

Industry

Government
Healthcare
Transportation
Utilities
