Orbit MCR (4Gc)
by GE Industrial Communications

Orbit MCR (4Gc)

$1,250.00 - $1,250.00
$1,250.00
$1,250.00 - $1,250.00
$1,250.00

Key features

-Rugged Router with LTE Cellular+ WiFi/Proprietary Licensed/Unlicensed Radios
-Static/RIPv2/OSPFv2/BGPv4 Routing, Bridging/VLANs, Modbus TCP/RTU/ASCII Serial Server
-Secure Boot, Firewall, IPsec VPN/DMVPN, RADIUS, Syslog-Over-TLS, WiFi WPA/WPA2
-CLI (SSH/Console), NETCONF, SNMP, Events/Alarms
-Operating temperature: -40 to 70C, Class 1 Div 2 Certified for hazardous locations

Product description

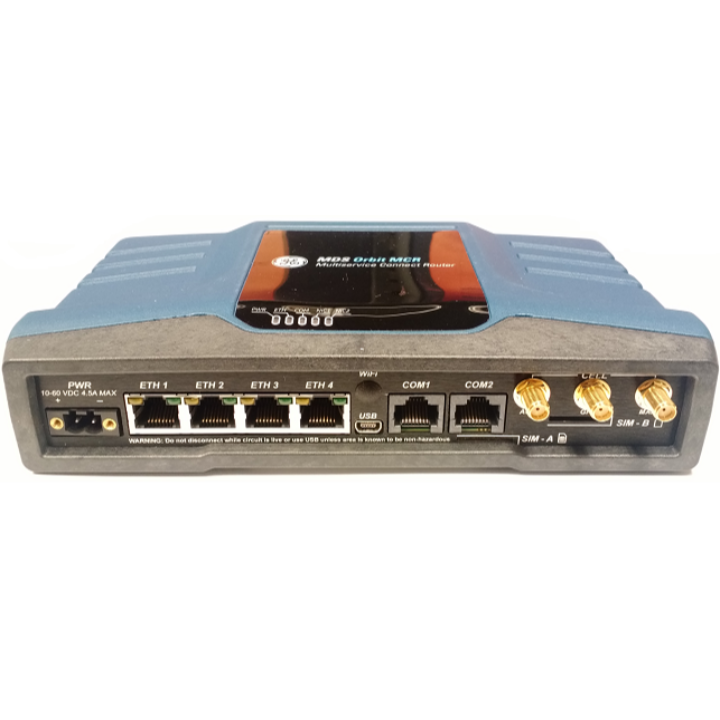

  • GE MDS MCR (Multi-Service Connect Router) is an industrial grade cellular router designed to securely connect remote devices to the enterprise network. It features multiple connectivity options

  • advanced cyber security and networking functionality along with industry leading reliability for critical applications. It can also incorporate a second radio to provide wireless connectivity using standard Wi-Fi or our proprietary licensed/unlicensed long-range narrowband/wideband radios. Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE with GSM/UMTS
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
4
SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
USB ports
SIM2 - Standard/Industrial Mini SIM (2FF)
Voltage supply
No
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM Yes
E911 No
eUICC No
Expansion Card Slots No
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial Yes
Smart Card Reader No
Voice Transmission Capable No
Wifi Yes
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management No
SMS Capability No
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 Yes

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 Yes
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable Yes
Private Wireless
Network (On Site)		 No

Chassis

Main Features
Dimensions
8"x4.8 inch Wx1.75 inchin.
Weight
1.55lbs lbs
Operating Temperature
-40 °C to 70 °C
Storage Temperature
-40 °C to 85 °C
Relative Humidity
No
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
Source, Destination, Static NAT
Routing Protocols
RIPv2, OSPFv2, BGPv4
Security Protocol
IPSec VPN (IKEv1/v2) PSK/RSA based, AES 128/192/256, SHA256/512, DMVPN, OpenVPN, FlexVPN
VPN Support
IPsec VPN, L2/L3 GRE, DMVPN, OpenVPN, FlexVPN
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS Yes
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz)
LTE Global / Roaming 1800 MHz, 1900 MHz, 850 MHz, 900 MHz
5G / Roaming 1800 MHz, 1900 MHz, 850 MHz, 900 MHz
5G Global / Roaming No
GPRS No
GSM No

Industry

Industrial / Manufacturing
Oil and Gas
Professional Services
Transportation
Utilities
