RUT956AF
by Teltonika Networks UAB

RUT956AF

$258.00 - $258.00
$258.00
$258.00 - $258.00
$258.00

Key features

-OpenVPN, PPTP/L2TP, IPSec, GRE Tunnel, Ping Reboot, Web Filter
-Dynamic DNS, QoS, Periodic Reboot, SMS Control / Gateway, SNMP, Mobile on Demand, Hotspot
-VLAN, VRRP, Bridge, Load balancing, Backup WAN

Product description

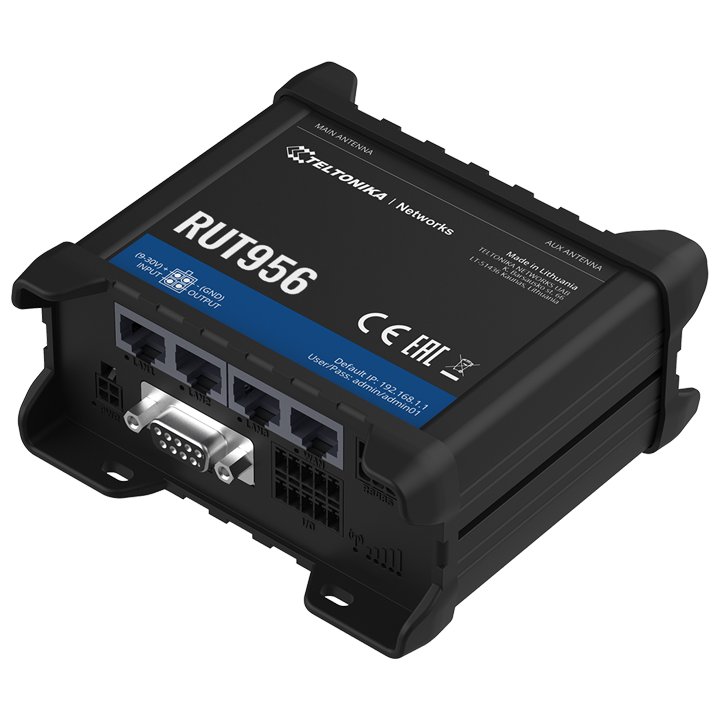

  • RUT956 is an industrial router that combines dual-SIM cellular 4G LTE

  • Wi-Fi
  • and wired connectivity options and additionally offers GNSS capabilities. The device is equipped with 4x Ethernet ports
  • WiFi
  • Dual-SIM
  • GNSS connectivity
  • an I/O connector block
  • and RS232/RS485 ports. Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE Only
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
4
SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
USB ports
1
Voltage supply
9-30 VDC
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM Yes
E911 No
eUICC No
Expansion Card Slots No
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial No
Smart Card Reader No
Voice Transmission Capable No
Wifi Yes
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
No
FoTA Client Type
No
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management No
SMS Capability Yes
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 Yes
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)		 LTE Licensed

Chassis

Main Features
Dimensions
3.94x4.33x1.97 in.
Weight
0.63 lbs
Operating Temperature
-40 °C to 75 °C
Storage Temperature
-45 °C to 80 °C
Relative Humidity
10% to 90% non-condensing
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
Yes
Routing Protocols
Static and Dynamic routes
Security Protocol
SSL v3
VPN Support
OpenVPN, PPTP/L2TP, IPSec, GRE Tunnel
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS No
LTE Band4 (1700 MHz), Band13 (700 MHz)
LTE Global / Roaming No
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No
