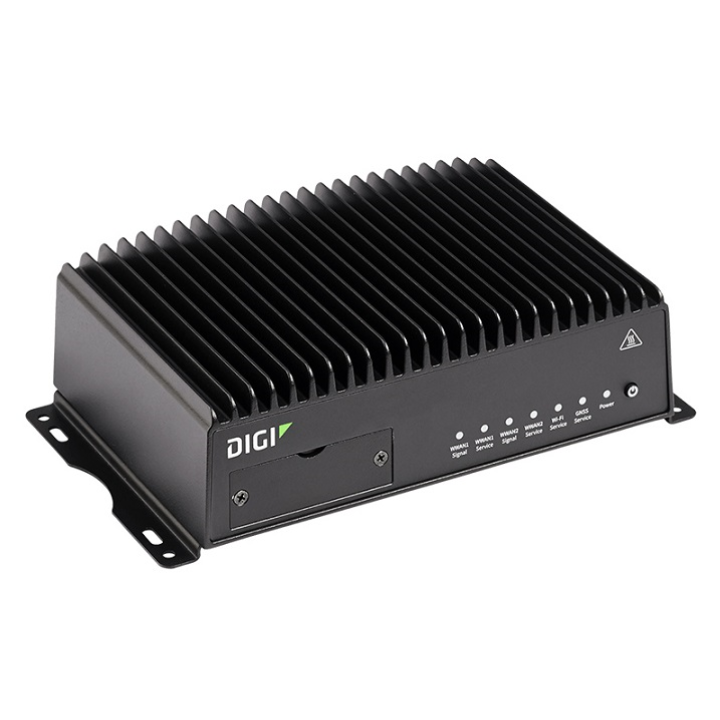

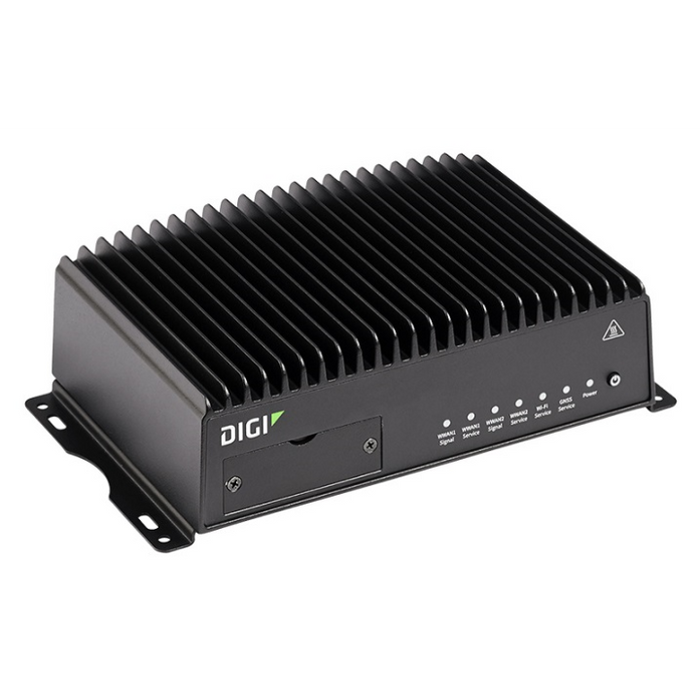

TX54-A256
by Digi International Inc.

TX54-A256

$2,549.59 - $2,549.59
$2,549.59
$2,549.59 - $2,549.59
$2,549.59

Key features

-Rugged Transportation / Public Safety / Smart City Router
-Dual 5G Cellular
-Wi-Fi and GNSS/GPS Support
-4 x RJ45 Ethernet w/USB Support

Product description

  • 5G rugged and secure cellular router for mission critical industrial

  • primary responder
  • public safety
  • and transportation applications. Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE with 5G NR NSA
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
4
SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
USB ports
SIM2 - Standard/Industrial Mini SIM (2FF)
Voltage supply
No
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM Yes
E911 No
eUICC No
Expansion Card Slots No
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial Yes
Smart Card Reader No
Voice Transmission Capable No
Wifi No
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level Security Level 1,(Regular OD devices. Minimum security requirements mandated.)
EMS No
MMS No
Remote Management Yes
SMS Capability Yes
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 Yes

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 Yes
Split Data Routing
(aka Dual APN)		 Yes
Multi-APN No
Global Capable Yes
Private Wireless
Network (On Site)		 No

Chassis

Main Features
Dimensions
5.75x8.25x2.5 in.
Weight
3.3 lbs
Operating Temperature
-34 °C to +74 °C
Storage Temperature
-40 °C to 85 °C
Relative Humidity
5% to 95% (non-condensing)
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging;
Routing Protocols
GRE; multicast routing; routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP;
Security Protocol
IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; SSL, SSLv2, SSLv3; authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support
VPN Support
IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; cryptology: SHA-1/256/384/512, MD5, RSA; encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448)
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS Yes
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz), Band66 (1700 MHz)
LTE Global / Roaming Band1 (2100MHz), Band3 (1800MHz), Band7 (2600 MHz), Band12 (700 MHz), Band14 (700 MHz), Band40 (2300 MHz), Band46 (5200 MHz)
5G / Roaming NSA FR1 (Sub6) n2, NSA FR1 (Sub6) n5, NSA FR1 (Sub6) n66, NSA FR1 (Sub6) n77
5G Global / Roaming No
GPRS No
GSM No

Industry

Construction
Government
Industrial / Manufacturing
Oil and Gas
Professional Services
Public Safety
Transportation
Utilities
