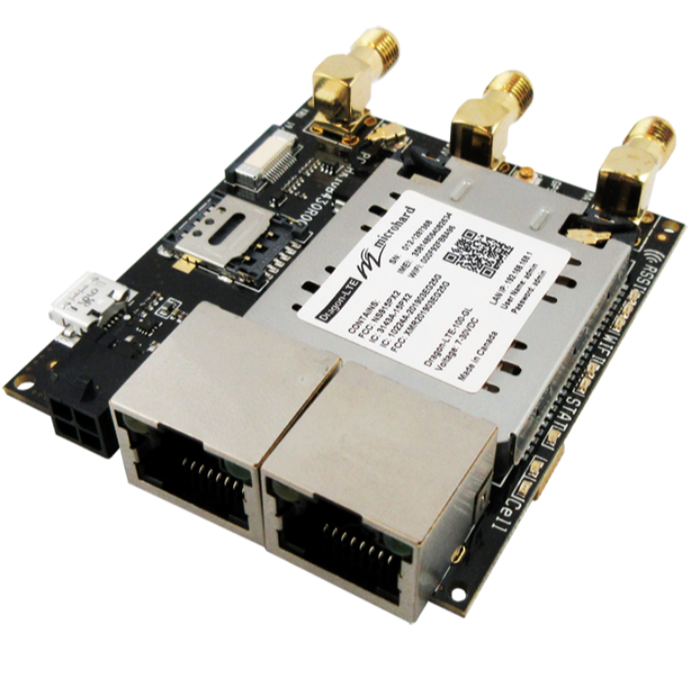

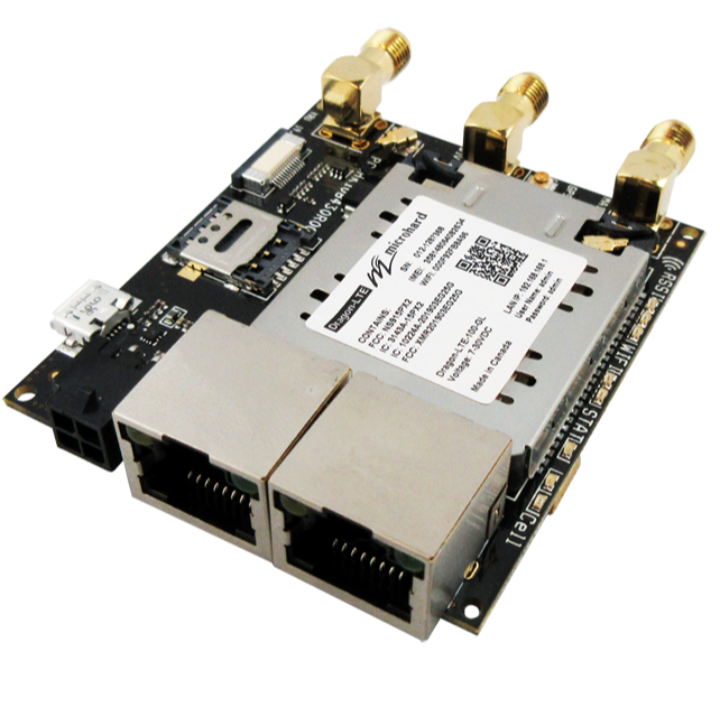

Dragon-LTE-100-GL
by Microhard Systems Inc.

Dragon-LTE-100-GL

$371.99 - $371.99
$371.99
$371.99 - $371.99
$371.99

Key features

-Multi-Band Support for Global Use, HSPA/WCDMA/EDGE/GPRS Compatible
-802.11b/g/n WIFI, Dual 10/100 Ethernet Ports, PoE (WAN), USB Direct Connect
-Wide Operating Temp (-40C to +85C), IP-Passthrough, SMS Alerts, Control
-VPN, IPSec with IKE/ISAKMP, L2TP, Site to Site Tunneling, Enhanced Port Forwarding, DMZ
-Microhard NMS Integration, Local/FOTA remote firmware upgradable

Product description

  • Dragon-LTE-100-GL provides a feature packed

  • compact OEM
  • industrial strength wireless IoT & M2M solution. Connect any device
  • wired or wireless
  • and provide remote cellular access using the Dragon-LTE. It features a OEM design for tight system integration and design flexibility with Global Band Support
  • Dual Ethernet Ports and High Power 802.11b/g/n WIFI. With Firewall
  • IPSec VPN Tunneling and IP/MAC Access Control Lists
  • the Dragon-LTE provides a solution for any cellular application! Vutility HotDrop Direct energy voltage

Contact manufacturer

Main Features
Network Technology
LTE Only
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
2
SIM type
Standard Nano SIM (4FF)
USB ports
1
Voltage supply
No
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM No
E911 No
eUICC No
Expansion Card Slots No
GNSS No
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial No
Smart Card Reader No
Voice Transmission Capable No
Wifi Yes
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Other
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management Yes
SMS Capability Yes
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 Yes
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)		 LTE Licensed

Chassis

Main Features
Dimensions
3.0x2.25x0.70 in.
Weight
1.94 oz
Operating Temperature
85 °C
Storage Temperature
No
Relative Humidity
5-95%, non-condensing
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
No
Routing Protocols
No
Security Protocol
Firewall with ACL Security
VPN Support
VPN, IPSec with IKE/ISAKMP Multiple Tunnel Support (16) L2TP, Site to Site Tunneling
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS No
LTE Band4 (1700 MHz), Band13 (700 MHz)
LTE Global / Roaming No
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No
