MTQ-MNG6-B02
by MultiTech Systems Inc

MTQ-MNG6-B02

$57.52 - $57.52
$57.52
$57.52 - $57.52
$57.52

Key features

-4G LTE CAT M1
-Developer friendly to integrate, quick to deploy and scale asset
-On-board GNSS or GPS
-Multiple I/O interfaces

Product description

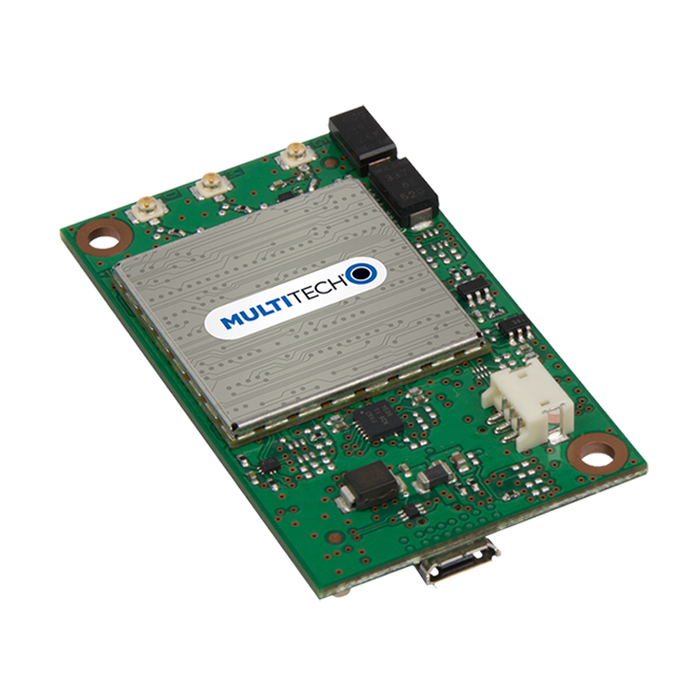

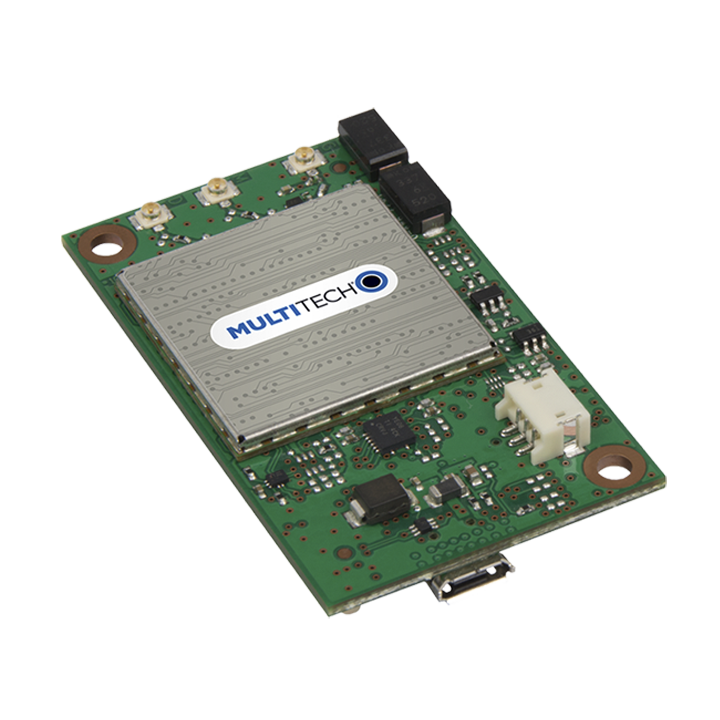

  • The MultiTech Dragonfly�Eembedded cellular modem is a ready-to-integrate mobile network carrier approved embedded modem that offers developers the functionality of an onboard cellular radio through a board 40 pin connector or USB-Micro connector

  • a SIM holder
  • all in a compact design. Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE Only
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
0
SIM type
Standard/Industrial Micro SIM (3FF)
USB ports
1
Voltage supply
No
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM No
E911 No
eUICC No
Expansion Card Slots No
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial No
Smart Card Reader No
Voice Transmission Capable No
Wifi No
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Other
Other Features
Developer Kit No
Diagnostics No
Security Level Security Level 1,(Regular OD devices. Minimum security requirements mandated.)
EMS No
MMS No
Remote Management No
SMS Capability Yes
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 No
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable Yes
Private Wireless
Network (On Site)		 No

Chassis

Main Features
Dimensions
2.3x1.375x.4 in.
Weight
.6 oz
Operating Temperature
-40 °C to +85 °C
Storage Temperature
-40 °C to +85 °C
Relative Humidity
20% to 90% RH, non-condensing
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
No
Routing Protocols
No
Security Protocol
No
VPN Support
No
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall No
UMTS No
LTE Band4 (1700 MHz), Band13 (700 MHz)
LTE Global / Roaming Band1 (2100MHz), Band3 (1800MHz), Band12 (700 MHz)
5G / Roaming 1800 MHz, 1900 MHz, 850 MHz, 900 MHz
5G Global / Roaming No
GPRS No
GSM No
