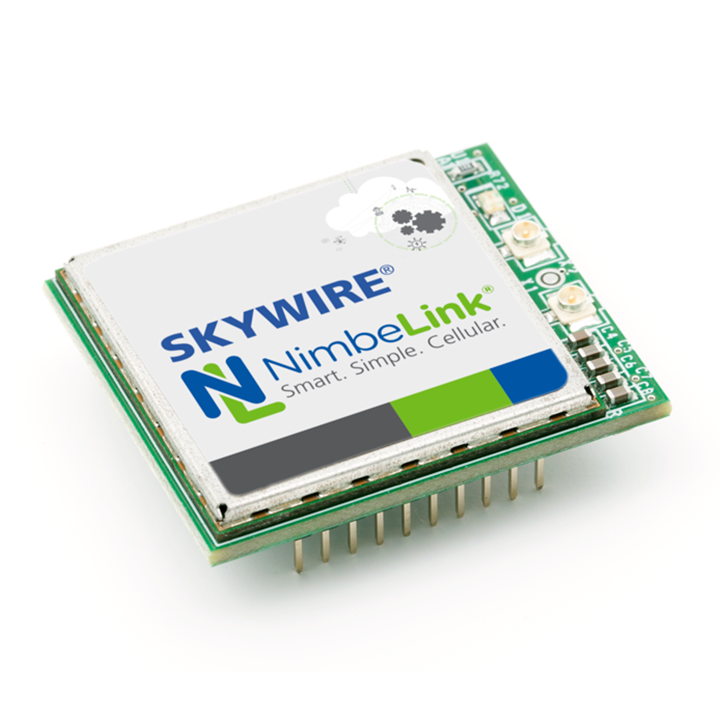

NL-SW-LTE-TC4NAG
by NimbeLink

NL-SW-LTE-TC4NAG

$124.00 - $124.00
$124.00
$124.00 - $124.00
$124.00

Key features

-IoT Modem
-Dual SIM (Soldered-Down Verizon SIM & 3FF Removable SIM)
-GNSS support for GPS, Glonass, Beidou, Galileo, and QZSS
-Multi-Carrier Support on a Single Device
-Skywire Standard Interface - Fully Interchangeable with Other Skywire Modems

Product description

The product is an LTE Cat 4 embedded modem meant for data-only use in IoT devices. It adds cellular connectivity in a quicker and easier to use form factor for IoT device developers.

Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE with GSM/UMTS
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
0
SIM type
Industrial Soldered SIM (MFF2 Embedded)
USB ports
1
Voltage supply
3.8v
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM No
E911 No
eUICC No
Expansion Card Slots No
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial Yes
Smart Card Reader No
Voice Transmission Capable No
Wifi No
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Other
Other Features
Developer Kit Yes
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management No
SMS Capability Yes
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 Yes
Split Data Routing
(aka Dual APN)		 Yes
Multi-APN No
Global Capable Yes
Private Wireless
Network (On Site)		 No

Chassis

Main Features
Dimensions
2.9x3.3x1.1 in.
Weight
0.28 oz
Operating Temperature
-40 to
Storage Temperature
-40 to
Relative Humidity
No
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
No
Routing Protocols
No
Security Protocol
No
VPN Support
No
Numbershare
Y - Numbershare only
Other Features
Fax capable No
Firewall No
UMTS No
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz), Band66 (1700 MHz)
LTE Global / Roaming Band14 (700 MHz)
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No
