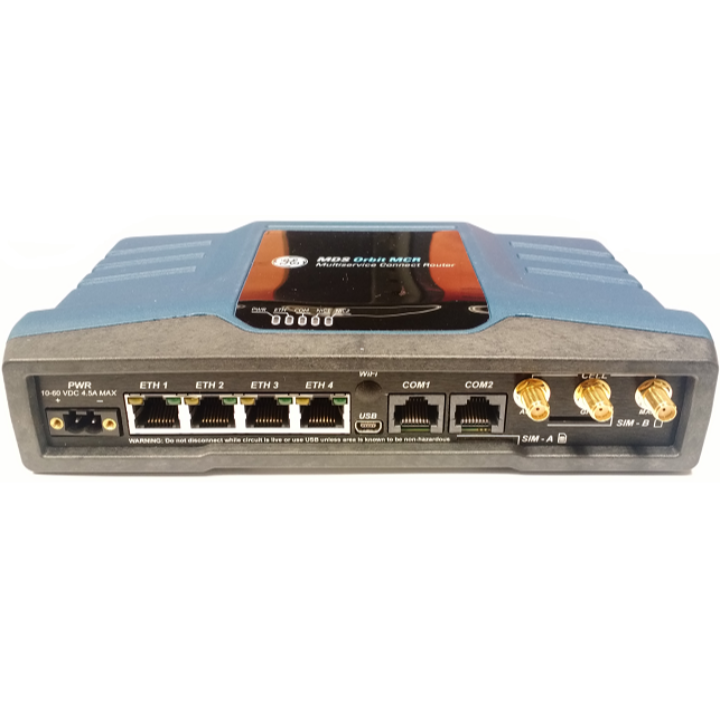

Orbit MCR (4Gy)

Original price $1,250.00 - Original price $1,250.00
Original price
$1,250.00
$1,250.00 - $1,250.00
Current price $1,250.00

Key features

-Security - Secure Boot, SPI/NAT Firewall, IPsec VPN, WiFi WPA/WPA2-PSK/Enterprise, RADIUS, Syslog-Over-TLS
-Management - CLI (SSH/Console), NETCONF, SNMP, Events/Alarms
-Networking/Applications - NTP, IP Routing, Bridging, IEEE 802.1q VLANs, 802.11D STP, TCP/UDP Serial Server, Modbus TCP/RTU/ASCII
-Operating temperature: -40 to 70C, Class 1 Div 2 Certified for hazardous locations

Product description

  • GE MDS MCR (Multi-Service Connect Router) is an industrial grade cellular router designed to securely connect remote devices to the enterprise network. It features multiple connectivity options

  • advanced cyber security and networking functionality along with industry leading reliability for critical applications. It can also incorporate a second radio to provide wireless connectivity using standard Wi-Fi or our proprietary licensed/unlicensed long-range narrowband/wideband radios. Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE Only
Other Features

Hardware

Main Features
Antenna
External
Battery
No
Display resolution
No
Ethernet ports
4
SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
USB ports
SIM2 - Standard/Industrial Mini SIM (2FF)
Voltage supply
No
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM Yes
E911 No
eUICC No
Expansion Card Slots No
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial Yes
Smart Card Reader No
Voice Transmission Capable No
Wifi Yes
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability

Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management Yes
SMS Capability No
WEA
(Wireless Emergency Alert)
No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)
No
Split Data Routing
(aka Dual APN)
Yes
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)
No

Chassis

Main Features
Dimensions
2.1 inch Hx4.3 inch Wx4.6 inch in.
Weight
No
Operating Temperature
-40 °F to °F
Storage Temperature
-40 °F
Relative Humidity
No
Other Features
Rain & dust resistance No
Vehicle Mounting Yes

Network

Main Features
NAT
Source, Destination, Static NAT
Routing Protocols
RIPv2, OSPFv2, BGPv4
Security Protocol
IPSec VPN (IKEv1/v2) PSK/RSA based, AES 128/192/256, SHA256/512
VPN Support
IPsec VPN, L2/L3 GRE
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS No
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz)
LTE Global / Roaming No
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No

Industry

Industrial / Manufacturing
Oil and Gas
Professional Services
Transportation
Utilities
