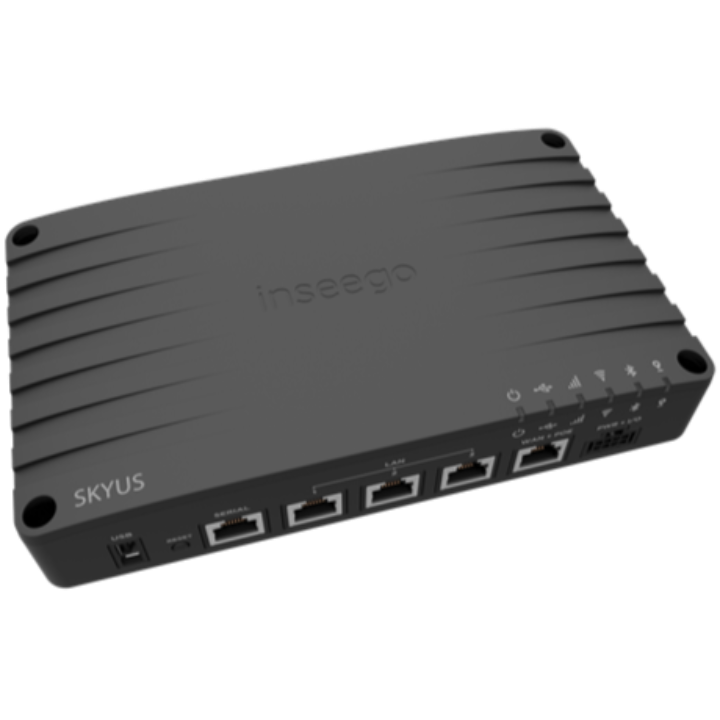

Skyus 500V

Original price $998.99 - Original price $998.99
Original price
$998.99
$998.99 - $998.99
Current price $998.99

Key features

-Cat-18 LTE and Support for External 5G NR and LTE USB or Ethernet WAN Modems
-2x2 2.4 and 5 GHz 802.11 a/b/g/n/ac WAVE2 WiFi, Access Point and Client Mode
-1x RJ45 LAN/WAN+PoE, 3x RJ45 LAN, 1x RJ45 for Serial, 1x USB 2.0 Type A
-aGPS, aGNSS, Dead Reckoning, Accelerometer, and Gyro for Advanced Location Based Services
-Backed by 30 Years of Cellular Experience and Over 32 Million Device Shipments

Product description

  • The Skyus 500V is an IP64 rated cellular router that features gigabit LTE Cat-18 speeds

  • secure multi-channel VPN
  • WAN PoE/LAN/Serial RJ45 ports with WiFi and BT. In addition
  • the Skyus 500V supports 5G NR
  • Skyus DS2
  • and Skyus SC plug-in modems to provide the speed and coverage that is needed for mission-critical business needs. This unparalleled combination of speed and features make it the ideal choice for numerous mobile and remote applications. Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE with GSM/UMTS
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
4
SIM type
Standard Nano SIM (4FF)
USB ports
1
Voltage supply
12 VDC
Other Features
Accelerometer Yes
Z-Wave No
Audio No
Battery Safety No
Bluetooth Yes
Camera No
Dual SIM No
E911 No
eUICC No
Expansion Card Slots No
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial Yes
Smart Card Reader No
Voice Transmission Capable No
Wifi Yes
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability

Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Other
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management Yes
SMS Capability Yes
WEA
(Wireless Emergency Alert)
No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)
Yes
Split Data Routing
(aka Dual APN)
Yes
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)
No

Chassis

Main Features
Dimensions
21x12x4 in.
Weight
42 oz
Operating Temperature
-30-70 °C
Storage Temperature
-40-85 °C
Relative Humidity
5 - 95 %RH
Other Features
Rain & dust resistance Yes
Vehicle Mounting Yes

Network

Main Features
NAT
Yes
Routing Protocols
Port Filtering, Port Forwarding, MAC Filtering, WAN Prioritization (USB, Ethernet, WiFi as WAN), DHCP Server, DMZ, Per-Client Content Filtering
Security Protocol
Encrypted Log Files, Encrypted Configuration Files, Secure On-board Firewall, WPA/WPA2 WiFi Authentication, MQTT Communication to IoT Connect with x.509 Certificates
VPN Support
IPsec VPN, NetMotion
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS No
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz), Band48 (3500 MHz), Band66 (1700 MHz)
LTE Global / Roaming Band3 (1800MHz), Band14 (700 MHz), Band46 (5200 MHz)
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No
