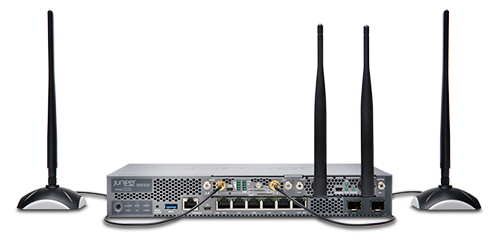

SRX320

Original price $1,387.00 - Original price $1,387.00
Original price
$1,387.00
$1,387.00 - $1,387.00
Current price $1,387.00

Key features

-LTE CAT6
-Carrier Aggregation (CA)
-Dual SIM (2FF)

Product description

  • The SRX320 supports up to 1 Gbps firewall and 300 Mbps IPsec VPN in a single

  • consolidated
  • cost-effective networking and security platform. The SRX-MP-LTE-AE LTE (CAT6) cellular module is optimized for use with Juniper Networks Inc SRX series products. Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE Only
Other Features

Hardware

Main Features
Antenna
External
Battery
No
Display resolution
No
Ethernet ports
8
SIM type
Standard/Industrial Mini SIM (2FF)
USB ports
1
Voltage supply
12VDC
Other Features
Accelerometer No
Z-Wave Yes
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM No
E911 No
eUICC No
Expansion Card Slots No
GNSS No
GPS No

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial No
Smart Card Reader No
Voice Transmission Capable No
Wifi No
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability

Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Other
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management No
SMS Capability No
WEA
(Wireless Emergency Alert)
No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)
Yes
Split Data Routing
(aka Dual APN)
No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)
No

Chassis

Main Features
Dimensions
142mmx94mmx21mm in.
Weight
110 grams
Operating Temperature
14°F to
Storage Temperature
-40°F to
Relative Humidity
5% to 95% Non-Condensing
Other Features
Rain & dust resistance No
Vehicle Mounting No

Network

Main Features
NAT
Source NAT, Destination NAT, Static NAT
Routing Protocols
RIP, OSPF, BGP, Multicast, MPLS
Security Protocol
IPSec
VPN Support
Site-Site VPN, Auto VPN, Group VPN
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS Yes
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz)
LTE Global / Roaming No
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No

Industry

Construction
Distribution
Education
Financial Services
Government
Healthcare
Hospitality
Industrial / Manufacturing
