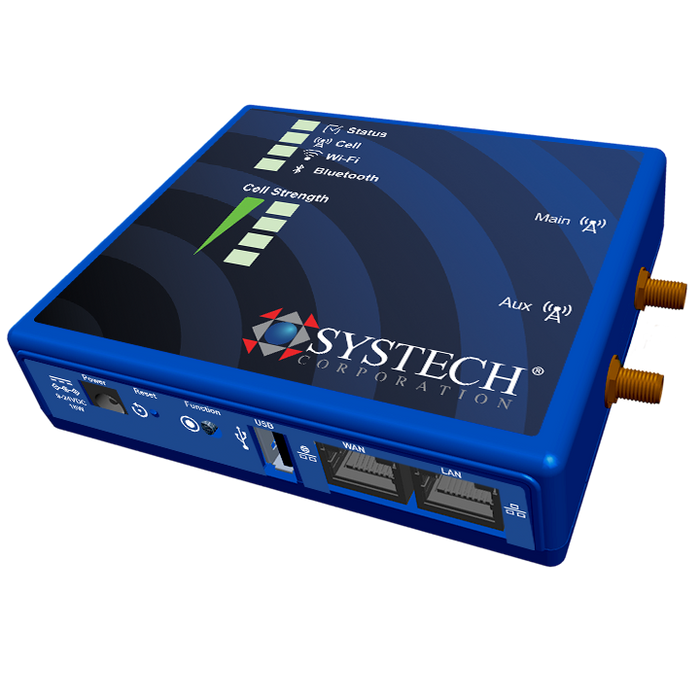

SysCORE 2-CZ4
by Systech Corporation

SysCORE 2-CZ4

$449.99 - $449.99
$449.99
$449.99 - $449.99
$449.99

Key features

-Cellular IoT Gateway with Ethernet and optional Bluetooth and Wi-Fi
-Software toolchain supports JavaScript, C, Python, and other Linux programming languages.
-Cloud-based remote management platform is provided
-Router Options MAC & IP address whitelist filtering SPI Firewall with DNAT, SNAT,
-GNSS

Product description

  • The SysCORE 2-CZ4 is a Cellular Gateway with inter-face options that include Cellular

  • Ethernet
  • Wi-Fi
  • USB
  • Blue-tooth
  • Serial
  • and GPIO. SysCORE 2-CZ4 functions as a secure commercial-grade router supporting VPN
  • IPSec
  • and OpenVPN options. A toolchain is provided to support JavaScript
  • C
  • Python
  • and other Linux programming languages. Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE Only
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
2
SIM type
Standard/Industrial Mini SIM (2FF)
USB ports
1
Voltage supply
9VDC - 24 VDC
Other Features
Accelerometer Yes
Z-Wave No
Audio Yes
Battery Safety No
Bluetooth Yes
Camera No
Dual SIM No
E911 No
eUICC No
Expansion Card Slots Yes
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial No
Smart Card Reader No
Voice Transmission Capable No
Wifi Yes
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Linux
Other Features
Developer Kit Yes
Diagnostics No
Security Level Security Level 1,(Regular OD devices. Minimum security requirements mandated.)
EMS No
MMS No
Remote Management Yes
SMS Capability No
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 Yes
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)		 No

Chassis

Main Features
Dimensions
5.5x4x1 in.
Weight
6 oz
Operating Temperature
-10 °C to 60 °C
Storage Temperature
-30 °C to 65 °C
Relative Humidity
5% to 90% Non Condening
Other Features
Rain & dust resistance Yes
Vehicle Mounting No

Network

Main Features
NAT
NAT Local Network to Cellular., NAT-T-VPN
Routing Protocols
No
Security Protocol
HTTPS, Open SSL 1.x, WEP, WPA, WPA2
VPN Support
Client or server support, OpenVPN & IPsec tunnel, NAT-T, and transport modes, Certificate support
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS Yes
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz)
LTE Global / Roaming Band7 (2600 MHz), Band12 (700 MHz)
5G / Roaming 850 MHz
5G Global / Roaming 850 MHz
GPRS No
GSM No
