TX64-A141
by Digi International Inc.

TX64-A141

$2,215.72 - $2,215.72
$2,215.72
$2,215.72 - $2,215.72
$2,215.72

Key features

-Passenger Wi-Fi over 867 Mbps 802.11ac access point
-Wired Gigabit Ethernet (4-port) for onboard systems
-Segmented private vs. public data communication using dual independent CAT11 LTE modules
-Video and vehicle data offload over 1.7 Gbps 802.11ac Wi-Fi backhaul

Product description

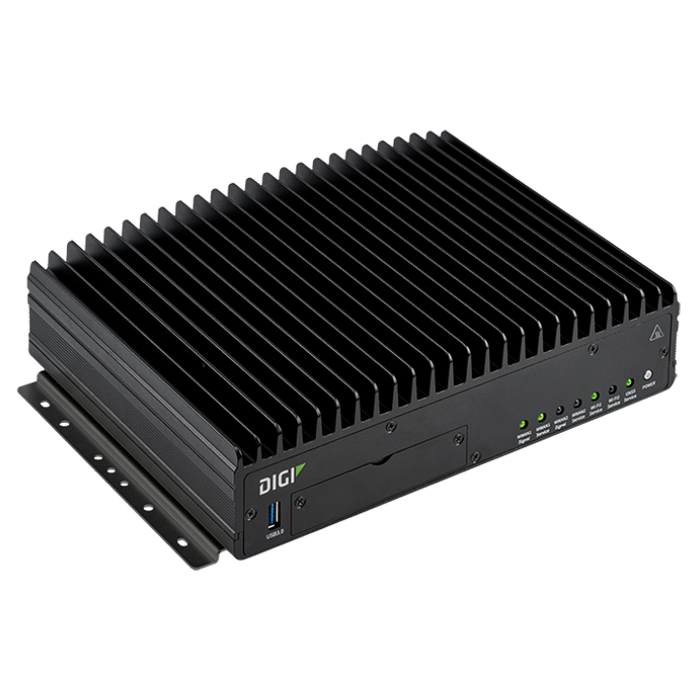

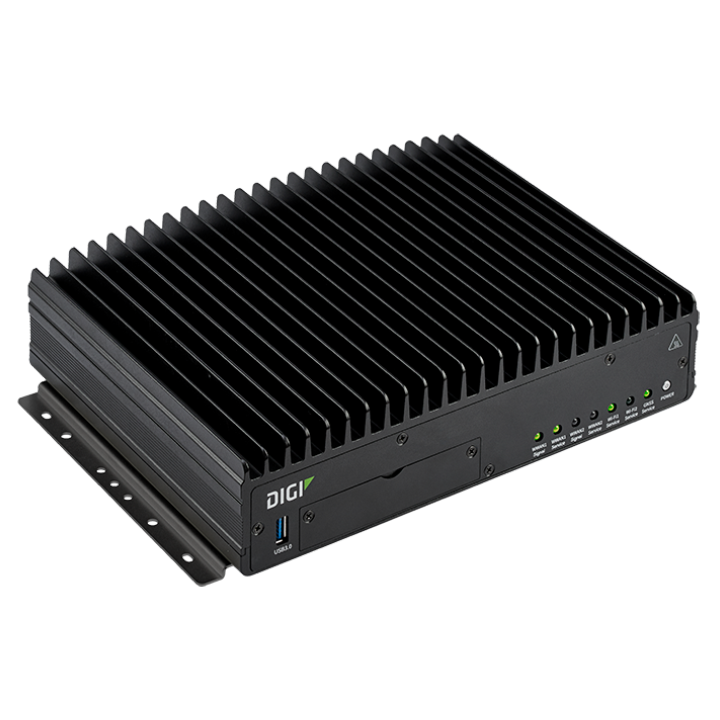

High performance cellular router with dual redundant communications for complex transit and transportation systems

Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE Only
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
4
SIM type
Standard/Industrial Mini SIM (2FF)
USB ports
1
Voltage supply
9-36VDC, 12/24 VDC vehicle rated, cold-crank down to 6VDC
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM No
E911 No
eUICC No
Expansion Card Slots No
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial Yes
Smart Card Reader No
Voice Transmission Capable No
Wifi Yes
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level No
EMS No
MMS No
Remote Management Yes
SMS Capability Yes
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 No
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)		 No

Chassis

Main Features
Dimensions
10.2 inx7.8 inx2.6 in.
Weight
No
Operating Temperature
-30 °C to 70 °C
Storage Temperature
-40 °C to 85 °C
Relative Humidity
0% to 95% (non-condensing) @ 25° C
Other Features
Rain & dust resistance No
Vehicle Mounting Yes

Network

Main Features
NAT
Yes
Routing Protocols
IPv4/IPv6, DMNR, QoS
Security Protocol
Stateful firewall, VPN (IPsec and OpenVPN), PKI and RADIUS
VPN Support
IPsec, OPenVPN
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS No
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz), Band48 (3500 MHz), Band66 (1700 MHz)
LTE Global / Roaming No
5G / Roaming No
5G Global / Roaming No
GPRS No
GSM No

Industry

Government
Industrial / Manufacturing
Public Safety
Transportation
Utilities
