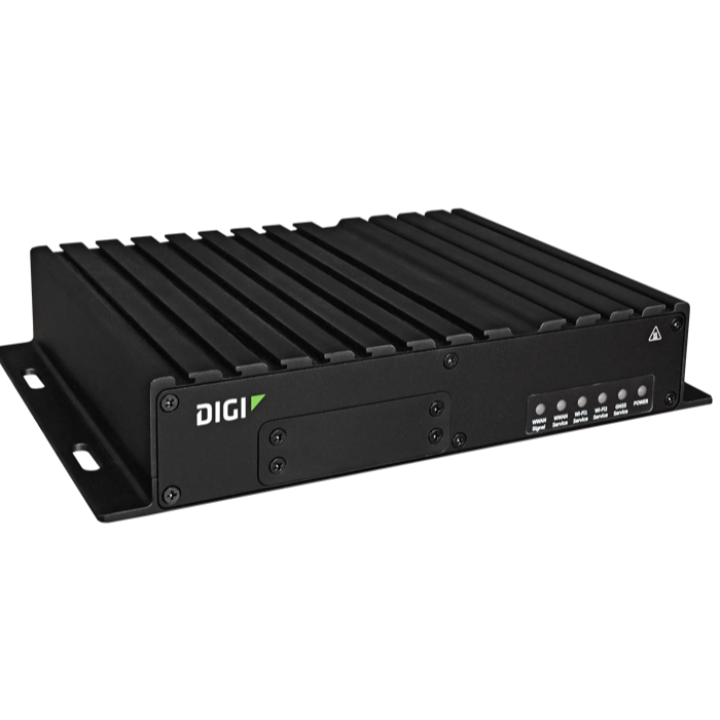

TX64-R210
by Digi International Inc.

TX64-R210

$1,299.00 - $1,299.00
$1,299.00
$1,299.00 - $1,299.00
$1,299.00

Key features

-5G-ready platform: future-built with powerful quad-core processor
-Segmented private vs. public data communication using independent 5G and 4G LTE modules
-Wired Gigabit Ethernet (4-port) for onboard systems
-Video and vehicle data offload over 1.7 Gbps Wi-Fi 5 backhaul
-Passenger Wi-Fi over 867 Mbps Wi-Fi 5 access point

Product description

High performance mobile access rail router with gigabit cellular communications for transit and transportation systems

Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE with 5G NR NSA
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
4
SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
USB ports
SIM2 - Standard/Industrial Mini SIM (2FF)
Voltage supply
No
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM Yes
E911 No
eUICC No
Expansion Card Slots No
GNSS Yes
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial Yes
Smart Card Reader No
Voice Transmission Capable No
Wifi No
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level Security Level 1,(Regular OD devices. Minimum security requirements mandated.)
EMS No
MMS No
Remote Management Yes
SMS Capability Yes
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 Yes
Split Data Routing
(aka Dual APN)		 Yes
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)		 LTE Licensed,LTE CBRS,5G Licensed

Chassis

Main Features
Dimensions
10.2x7.8x2.0 in.
Weight
8.6 lbs
Operating Temperature
-34 °C to +74 °C
Storage Temperature
-40 °C to +85 °C
Relative Humidity
5% to 95% (non-condensing) @ 25°C
Other Features
Rain & dust resistance Yes
Vehicle Mounting Yes

Network

Main Features
NAT
Yes
Routing Protocols
IPv4/IPv6, DMNR, QoS
Security Protocol
Stateful firewall, VPN (IPsec and OpenVPN), PKI and RADIUS
VPN Support
IPsec, OpenVPN
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall Yes
UMTS Yes
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz), Band48 (3500 MHz), Band66 (1700 MHz)
LTE Global / Roaming NSA FR1 (Sub6) n2, NSA FR1 (Sub6) n5, NSA FR1 (Sub6) n66, NSA FR1 (Sub6) n77
5G / Roaming NSA FR1 Roaming n66, NSA FR1 Roaming n77, NSA FR1 Roaming n78
5G Global / Roaming No
GPRS No
GSM No

Industry

Construction
Government
Industrial / Manufacturing
Oil and Gas
Public Safety
Transportation
Utilities
