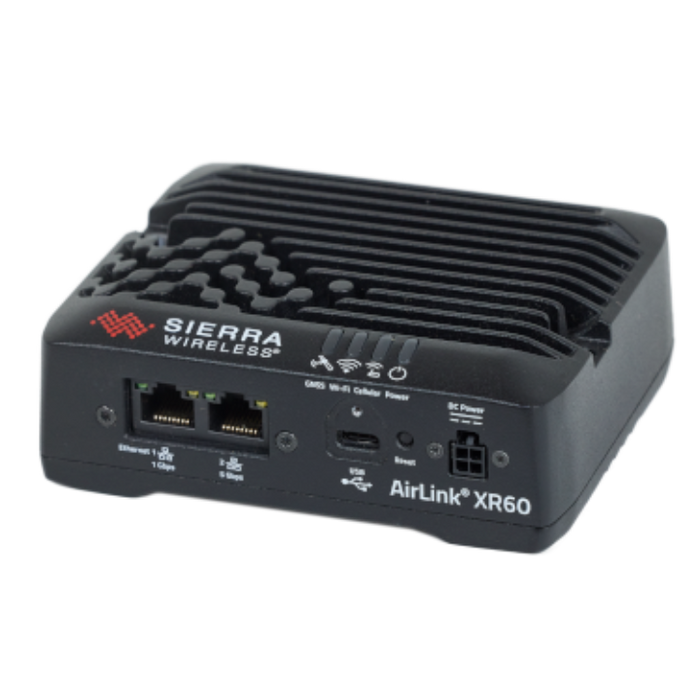

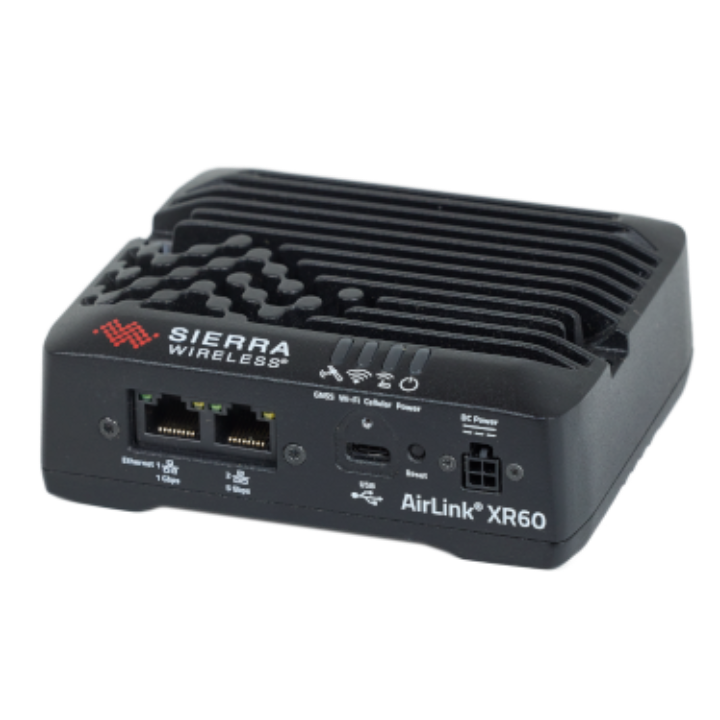

XR60 5G 9291
by Sierra Wireless

XR60 5G 9291

$1,099.00 - $1,099.00
$1,099.00
$1,099.00 - $1,099.00
$1,099.00

Key features

-5 Gigabit Ethernet Port
-WiFi 6
-Serial/USB Interface
-IP64 Rating

Product description

  • The AirLink® XR is a high performance 5G networking platform

  • purpose built to provide secure
  • always-on connectivity for mission critical and business applications in public safety
  • industrial and enterprise. With 5G connectivity
  • the AirLink XR60 offers 5G sub-6 GHz and LTE Cat-20 to provide high speed connectivity in 4G and 5G coverage. AirLink delivers best in-class performance and reliability
  • whilst ensuring continual operation even in harsh environments. Vutility HotDrop Direct energy voltage amp

Contact manufacturer

Main Features
Network Technology
LTE with GSM/UMTS and 5G NR NSA
Other Features

Hardware

Main Features
Antenna
No
Battery
No
Display resolution
No
Ethernet ports
2
SIM type
Standard/Industrial Mini SIM (2FF)
USB ports
1
Voltage supply
7 to 36 VDC
Other Features
Accelerometer No
Z-Wave No
Audio No
Battery Safety No
Bluetooth No
Camera No
Dual SIM No
E911 No
eUICC No
Expansion Card Slots No
GNSS No
GPS Yes

Keyboard No
Magnetic Card Reader No
Printer No
RJ-11 No
Scanning Technology No
Serial Yes
Smart Card Reader No
Voice Transmission Capable No
Wifi Yes
Zigbee No

Software

Main Features
FoTA For Baseband/Modem
Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Linux
Other Features
Developer Kit No
Diagnostics No
Security Level Security Level 1,(Regular OD devices. Minimum security requirements mandated.)
EMS No
MMS No
Remote Management No
SMS Capability No
WEA
(Wireless Emergency Alert)		 No
Persistent Prefix IPv6 No

Mobile Private Network Yes
Fixed Wireless Access
(FWA)		 Yes
Split Data Routing
(aka Dual APN)		 No
Multi-APN No
Global Capable No
Private Wireless
Network (On Site)		 LTE Licensed,5G Licensed,5G CBRS

Chassis

Main Features
Dimensions
No
Weight
No
Operating Temperature
-30 °C to 70 °C
Storage Temperature
-40 °C to 85 °C
Relative Humidity
95% RH @ 60C
Other Features
Rain & dust resistance Yes
Vehicle Mounting No

Network

Main Features
NAT
Yes
Routing Protocols
Static, Policy Based
Security Protocol
SSH, HTTPS, TLS, DTLS
VPN Support
IPsec
Numbershare
N - no Numbershare
Other Features
Fax capable No
Firewall No
UMTS Yes
LTE Band2 (1900 MHz), Band4 (1700 MHz), Band5 (850MHz), Band13 (700 MHz), Band48 (3500 MHz), Band66 (1700 MHz)
LTE Global / Roaming Band1 (2100MHz), Band3 (1800MHz), Band7 (2600 MHz), Band8 (900 MHz), Band12 (700 MHz), Band14 (700 MHz), Band17 (700 MHz), Band18 (850 MHz), Band20 (800 MHz), Band25 (1900 MHz), Band26 (850 MHz), Band28 (700 MHz), Band40 (2300 MHz), Band41 (2500 MHz), Band46 (5200 MHz)
5G / Roaming NSA FR1 (Sub6) n2, NSA FR1 (Sub6) n5, NSA FR1 (Sub6) n66, NSA FR1 (Sub6) n77
5G Global / Roaming NSA FR1 Roaming n66, NSA FR1 Roaming n77, NSA FR1 Roaming n78
GPRS No
GSM No

Industry

Construction
Distribution
Government
